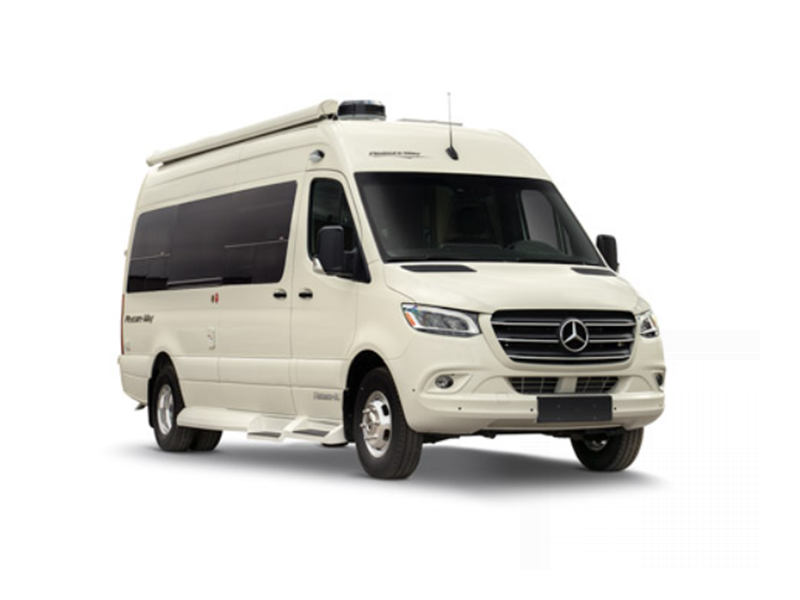

Pleasure-Way Plateau Motor Home Class B - Diesel RVs For Sale
The design, comfort, and craftsmanship will take you to new heights with these Pleasure-Way Plateau Class B diesel motorhomes! Their stunning looks are proven to endure and designed for dynamic living. The functional layout can accommodate a wide range of lifestyles with optimal use of the available space.
The dual 10 inch touchscreen control panels include climate control, battery monitoring, Go Power!® solar integration, and an automatic generator start all at the touch of a finger. Other exceptional features included are the Truma AquaGo Comfort Plus water heater that has a recirculating water line, a mixing vessel, and a 60,000 BTU stepless burner to deliver hot water on demand. Plus, there is a Xantrex 2,000 watt inverter to keep your entertainment and cooking needs powered when you're not plugged into shore power or using the generator.
Pleasure-Way is committed to quality by including high-end features with these Plateau Class B diesel motorhomes!
-
Plateau FL
Pleasure-Way Plateau Class B diesel motorhome FL highlights: Swivel Seating ... more about Plateau FL
Specifications

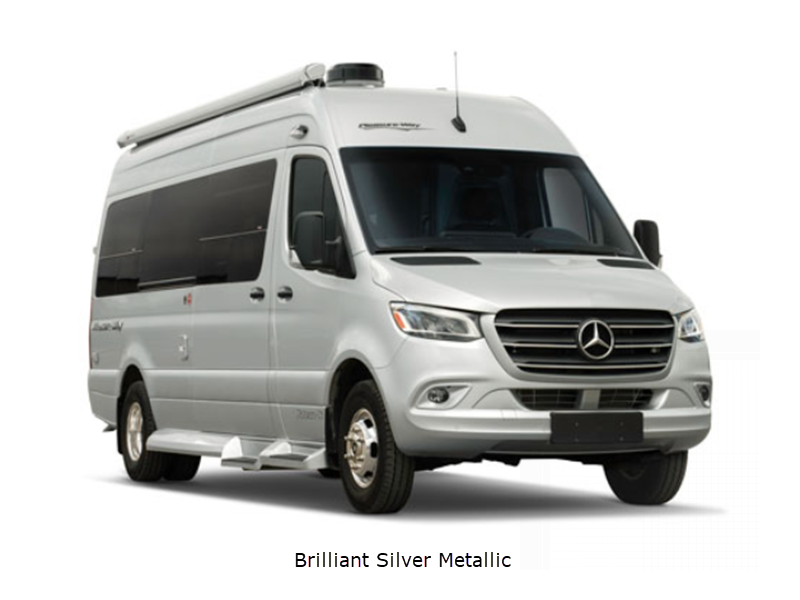

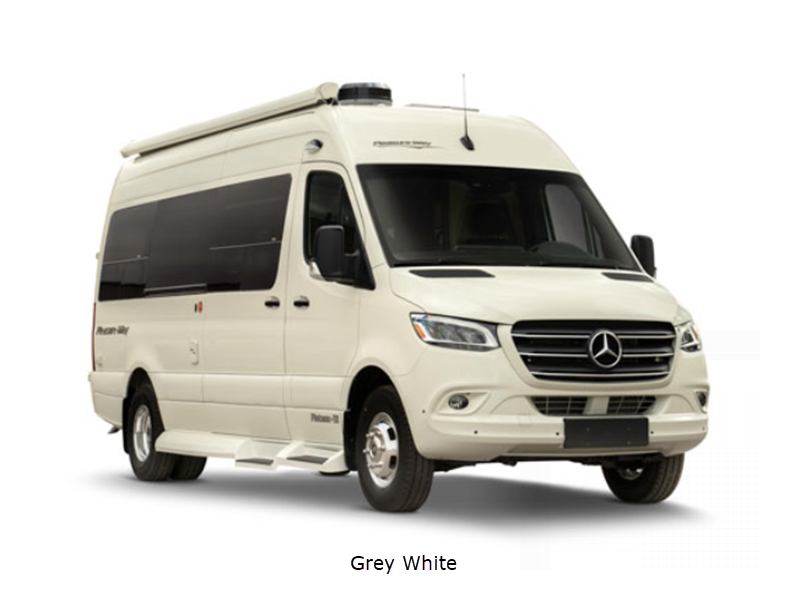

Sleeps 3 Length 22 ft 9 in Ext Width 7 ft 11 in Ext Height 9 ft 10 in Int Height 6 ft 3 in Interior Color Cashmere, Flint Exterior Color Brilliant Silver Metallic, Grey White Hitch Weight 4220 lbs GVWR 11030 lbs Fresh Water Capacity 24 gals Grey Water Capacity 35 gals Black Water Capacity 10 gals Tire Size LT215/85R/16 Furnace BTU 11500 btu Generator 2.5 kW Onan QG 2500i LP Fuel Type Diesel Engine 4-Cyliner OM 654 High Output Chassis Mercedes-Benz Sprinter 3500 Horsepower 211 hp Fuel Capacity 24.5 gals Wheelbase 170 in Refrigerator Type 12V Refrigerator Size 3.2 cu ft Cooktop Burners 1 Number of Awnings 1 LP Tank Capacity 8.16 gals Water Heater Type Truma AquaGo Comfort Plus Instant AC BTU 13500 btu TV Info Front 24" Smart LED TV, Rear 24" Smart LED TV Awning Info Fiamma Power with LED Lights Gross Combined Weight 15250 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp -
Plateau TS
Pleasure-Way Plateau Class B diesel motorhome TS highlights: Power Sofa Lagun ... more about Plateau TS
Have a question about this floorplan? Contact Us
Specifications
Sleeps 3 Length 22 ft 9 in Ext Width 7 ft 11 in Ext Height 9 ft 10 in Int Height 6 ft 3 in Interior Color Cashmere, Flint Exterior Color Brilliant Silver Metallic, Grey White Hitch Weight 4220 lbs GVWR 11030 lbs Fresh Water Capacity 24 gals Grey Water Capacity 35 gals Black Water Capacity 12 gals Tire Size LT215/85R/16 Furnace BTU 11500 btu Generator 2.5 kW Onan QG 2500i LP Fuel Type Diesel Engine 4-Cyliner OM 654 High Output Chassis Mercedes-Benz Sprinter 3500 Horsepower 211 hp Fuel Capacity 24.5 gals Wheelbase 170 in Refrigerator Type 12V Refrigerator Size 8.2 cu ft Convection Cooking Yes Cooktop Burners 1 Number of Awnings 1 Axle Weight Front 4080 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 8.16 gals Water Heater Type Truma AquaGo Comfort Plus Instant AC BTU 13500 btu TV Info Rear 24" Smart LED TV Awning Info Fiamma Power with LED Lights Gross Combined Weight 15250 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp -
Plateau TW

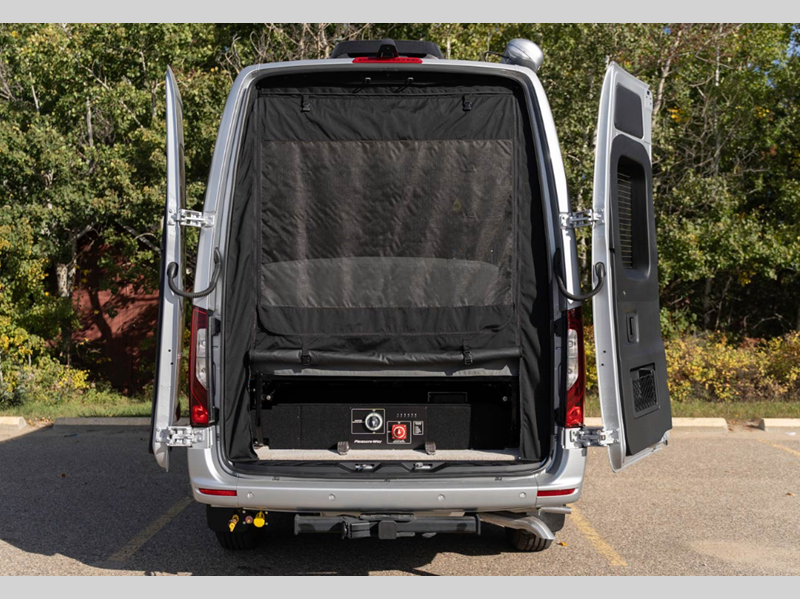

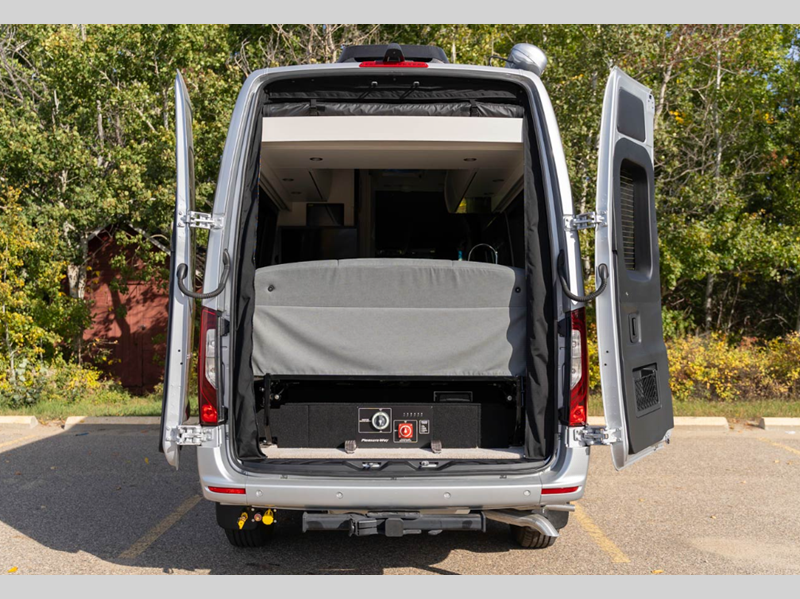

Pleasure-Way Plateau Class B diesel motorhome TW highlights: Rear Double Doors ... more about Plateau TW
Have a question about this floorplan? Contact Us
Specifications

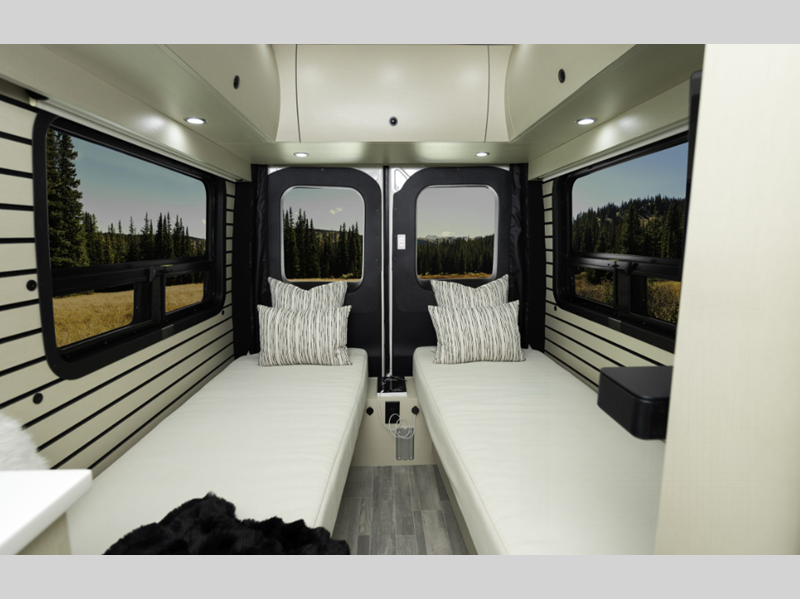

Sleeps 2 Length 22 ft 9 in Ext Width 7 ft 11 in Ext Height 9 ft 10 in Int Height 6 ft 3 in Interior Color Cashmere, Flint Exterior Color Brilliant Silver Metallic, Grey White Hitch Weight 4220 lbs GVWR 11030 lbs Fresh Water Capacity 24 gals Grey Water Capacity 35 gals Black Water Capacity 10 gals Tire Size LT215/85R/16 Furnace BTU 11500 btu Generator 2.5 kW Onan QG 2500i LP Fuel Type Diesel Engine 4-Cyliner OM 654 High Output Chassis Mercedes-Benz Sprinter 3500 Horsepower 211 hp Fuel Capacity 24.5 gals Wheelbase 170 in Available Beds Two Twin Beds Refrigerator Type 12V Refrigerator Size 3.2 cu ft Cooktop Burners 1 Number of Awnings 1 LP Tank Capacity 8.16 gals Water Heater Type Truma AquaGo Comfort Plus Instant AC BTU 13500 btu TV Info Front 24" Smart LED TV, Rear 24" Smart LED TV Awning Info Fiamma Power with LED Lights Gross Combined Weight 15250 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp Similar Floorplans
Plateau Features:
Standard Features (2025)
Entertainment
- Front 24” Smart LED TVs w/ swing out mount (N/A TS)
- Rear 24” Smart LED TVs w/ swing out mount
- Bose® soundbar w/ Bluetooth®
- Winegard® Rayzar® Automatic HDTV antenna
- Cable TV hook up
- USB-A & USB-C charging ports

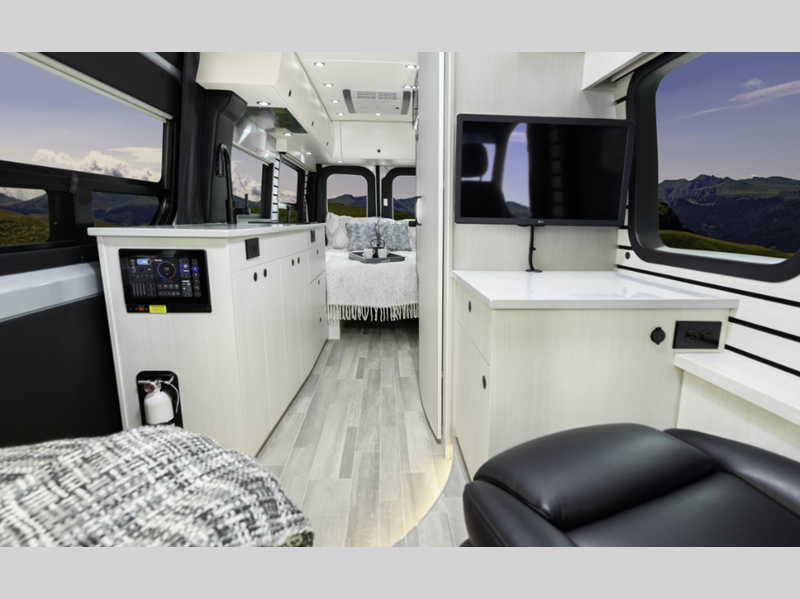

Interior
- Corian® topped workstation in front lounge (FL only)

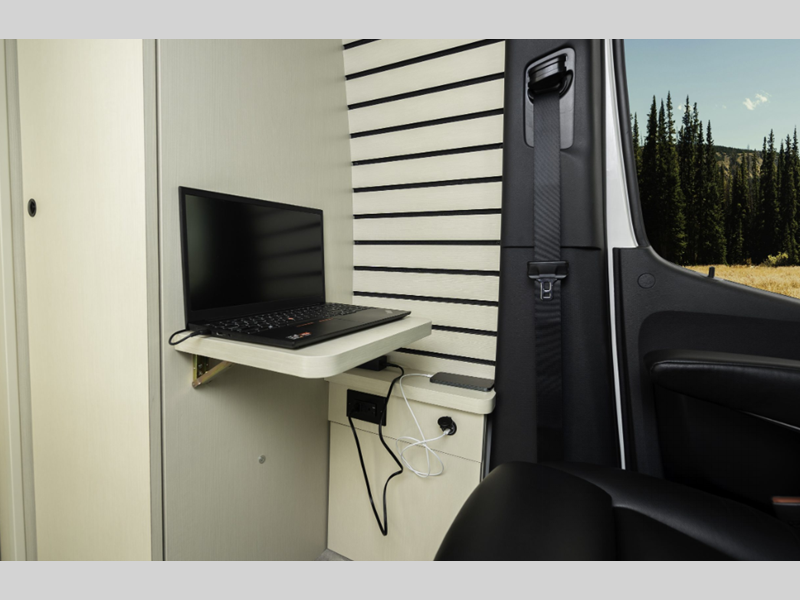

- Flip-up workstation in front lounge (TW)
- Inflatable air bed fitted for cab (N/A TW)
- Blackout roller shades w/ magnetic catch
- Folding privacy/sun shades for windshield & cab door windows
- Laminate Radius cabinet doors

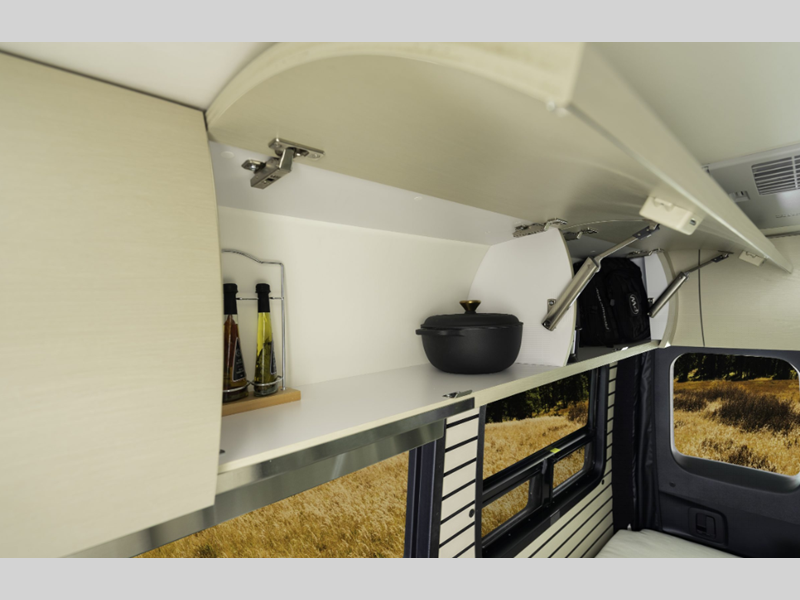

- Hidden 'push to open' positive cabinet latches
- Blum® cabinet hinges and door stays
- Recessed LED lighting under cabinets and along roof

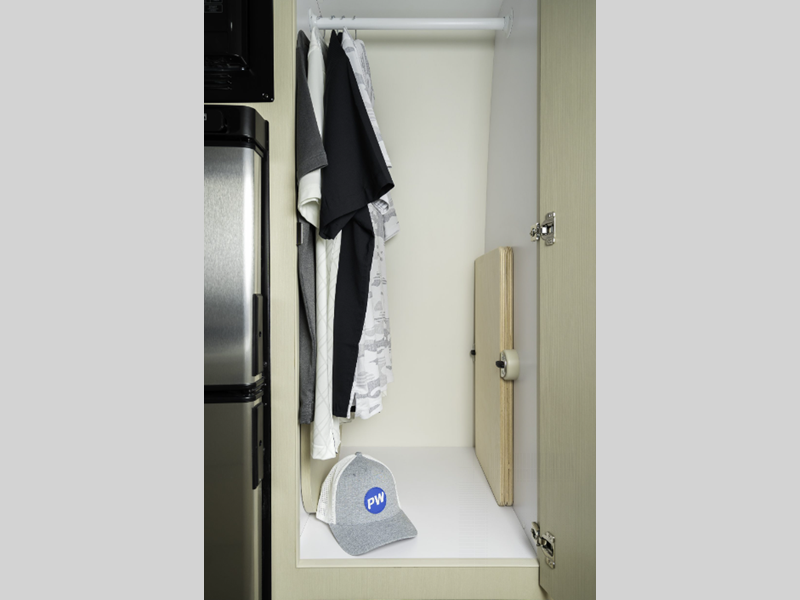

- Wardrobe w/ hanging rod (FL, TW)
- Full-size wardrobe w/hanging rod (TS)
- Horizontal acoustic slatwall (TW)
- Laminate wrapped kitchen, wall partitions and cabinet boxes
- Vinyl soft touch headliner
- Vinyl flooring
- Microfiber suede upholstery on rear walls (N/A TW)
- 3M™ Thinsulate™ insulation inside walls
- Foil-faced fiberglass insulation along roof
- Fire extinguisher
- LP, CO & Smoke detectors

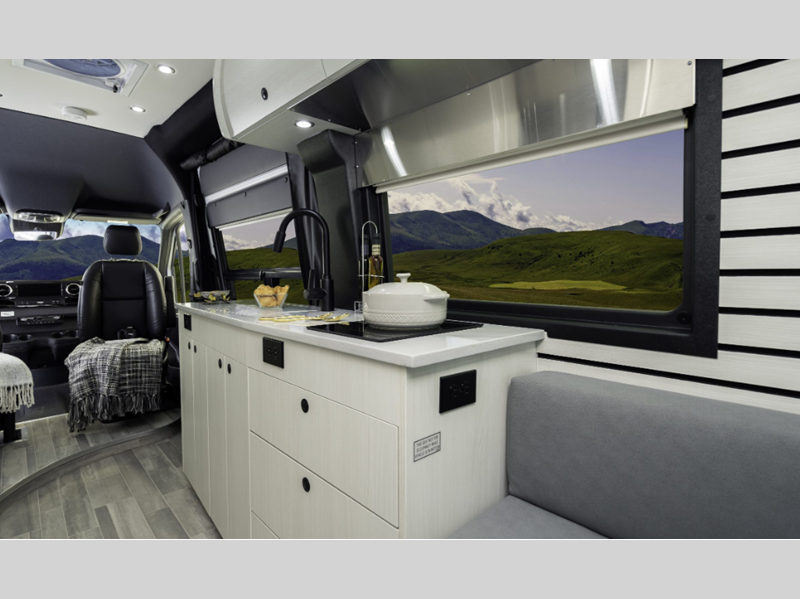

Galley
- 12V, 3.2 cu. ft. refrigerator/freezer (FL, TW)
- 12V 2-door, 8.2 cu. ft. refrigerator/freezer (TS)
- Pull-out pantry (FL, TW)
- 1-burner induction stove
- Microwave (FL, TW)
- Microwave/convection oven (TS)
- Large undermount stainless steel sink w/ Corian® cover
- High arc single-handle faucet w/ pull-out sprayer

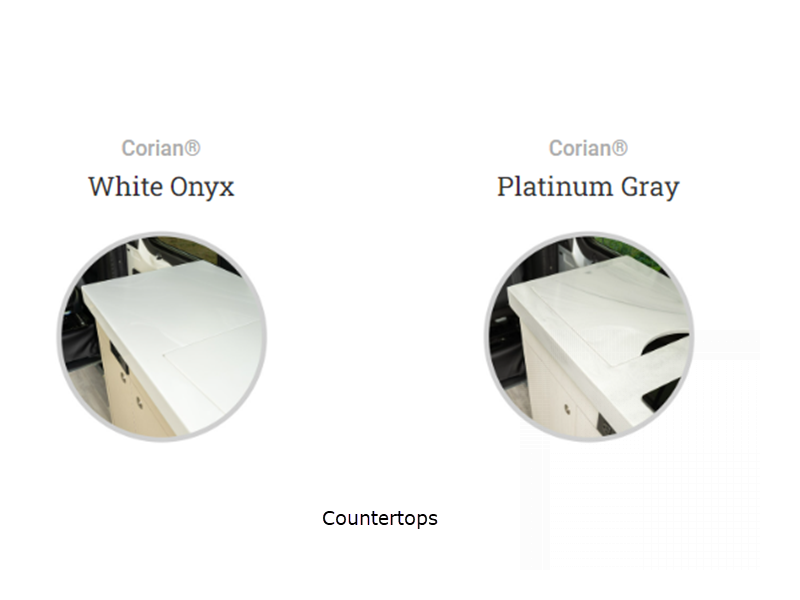

- Corian® solid surface countertop
- Full extension ball bearing drawer glides w/ soft close
- Baltic birch drawer boxes

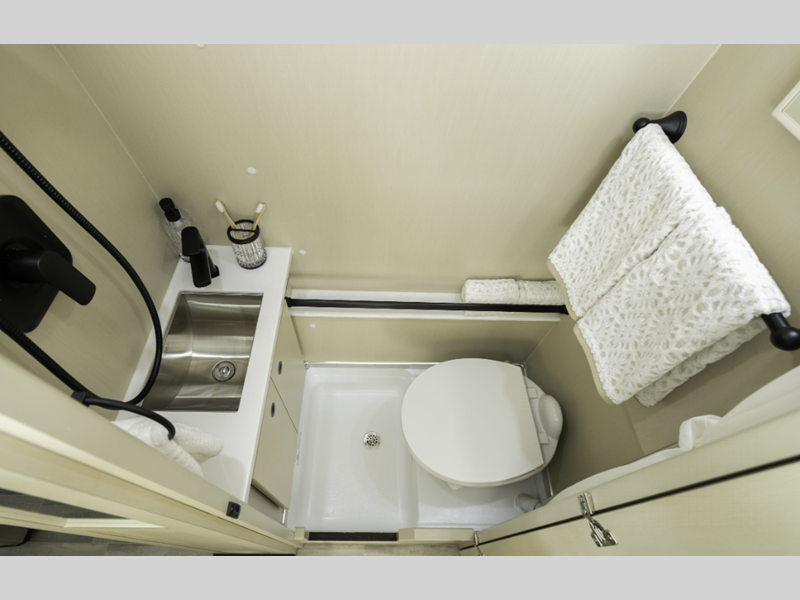

Bathroom

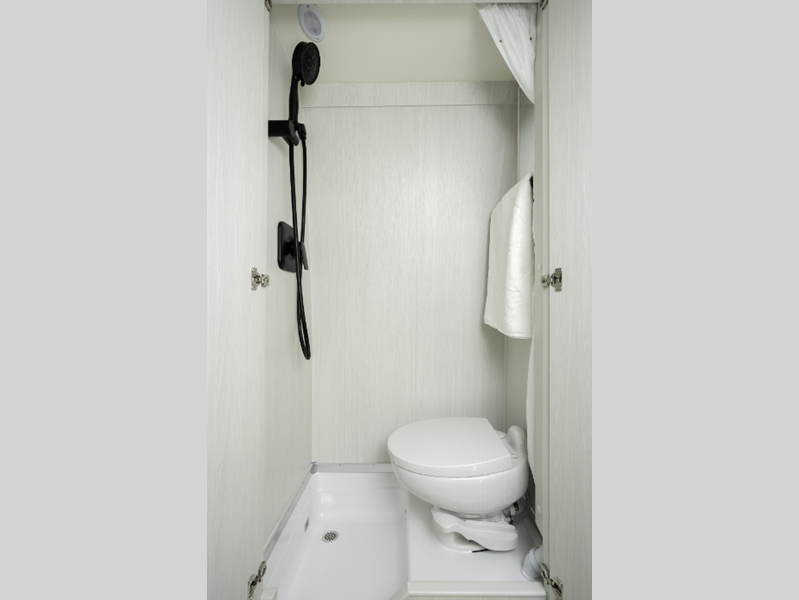

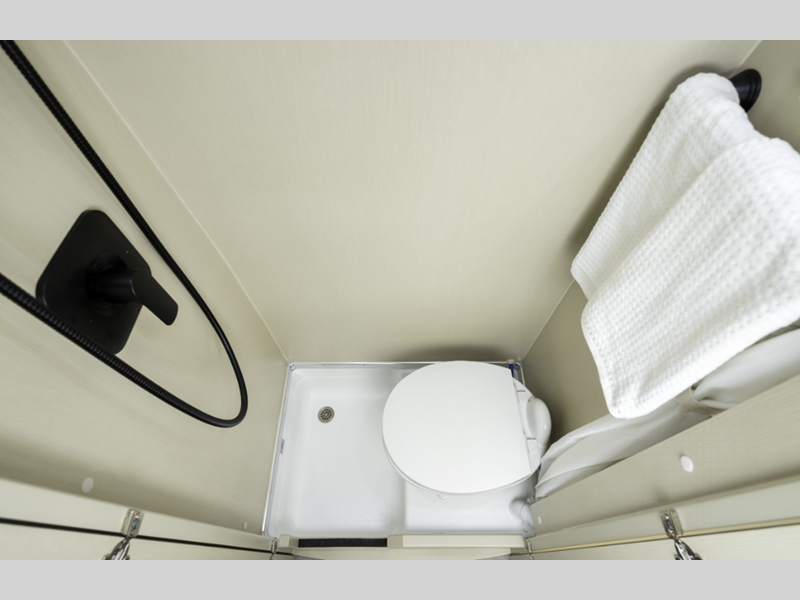

- Private enclosed wet bath w/ shower
- Shower curtain
- Moen matte black shower system
- Handheld showerhead (N/A TW)
- Medicine cabinet w/ mirror (N/A TW)
- Corner sink w/ faucet (FL)
- Vanity w/storage (TS)
- Stainless steel sink (TS)
- Corian® countertop (TS)
- Residential-style ceramic bowl toilet w/ foot flush
- Towel rack
- 110-120 volt GFCI power outlet (TS)
Electrical
- Dual 10-inch touchscreen control panels
- 600Ah Eco-Ion Earth Smart Lithium (LiFePO4) coach batteries
- Internal/automatic coach battery heating system for cold weather protection
- Xantrex Freedom XC Pro 3000-Watt True Sine Wave Inverter/Charger
- 100-amp lithium charger
- Available 300-Watt Go Power!® solar package
- Go Power!® MPPT solar controller
- 2.5 KW Onan® QG 2500i LP generator
- Automatic generator start (AGS)
- Mastervolt DC/DC charger
- Multiplex wiring
- Dimmable LED lighting
- 12-volt coach battery disconnect
- Charge line disconnect (solar and alternator)
- 30-amp power cord
- AC distribution panel
- DC load center
Touchscreen Control Panel
- Upgraded resolution for wider viewing angles
- 10-inch full-color display
- Integrated inverter controls
- Coach battery state-of-charge meter
- Coach battery temperature gauge
- Estimated time until full charge read-out
- Remaining runtime for DC power read-out
- Real-time 12-volt net loss/gain amperage meter
- Solar charger controls and monitoring
- Tank level monitoring – LP, fresh, grey and black
- Climate control center w/ thermostat for A/C, vent and furnace
- Truma AquaGo® comfort plus water heater controls
- Dimmable LED light banks
- Water pump, awning, sofa and vent controls
- Generator start/stop and automatic generator start (AGS)
- DC electrical system diagnostics
- Dark and light viewing modes
Exterior
- Fiamma® power awning w/ LED lights
- LED porch light
- Awning style frameless windows
- 110-120 volt power outlet
- Utility center (LP switch, cable TV hook-up, 30-amp power outlet, city water connection)
- Exterior shower w/ handheld wand
- Fiberglass running boards w/ integrated entrance steps
- Access panels and components painted to match exterior color
Heating, Ventilation & Cooling
- Truma VarioHeat 11,500 BTU Furnace
- Power lift Dometic Fan-Tastic Vent fan w/ rain sensor
- Truma Aventa Eco 13,500 BTU air conditioner
Plumbing & Liquid Propane Systems
- Shurflo® automatic demand water system
- Truma AquaGo® comfort plus instant water heater
- Water heater bypass valve
- Monitor panel for LP, fresh, grey, black and coach batteries
- Sewer discharge center w/ black and grey water gate valves
- Low point drain for water lines
- LP tank w/ electric shut off switch
- LP BBQ quick connect

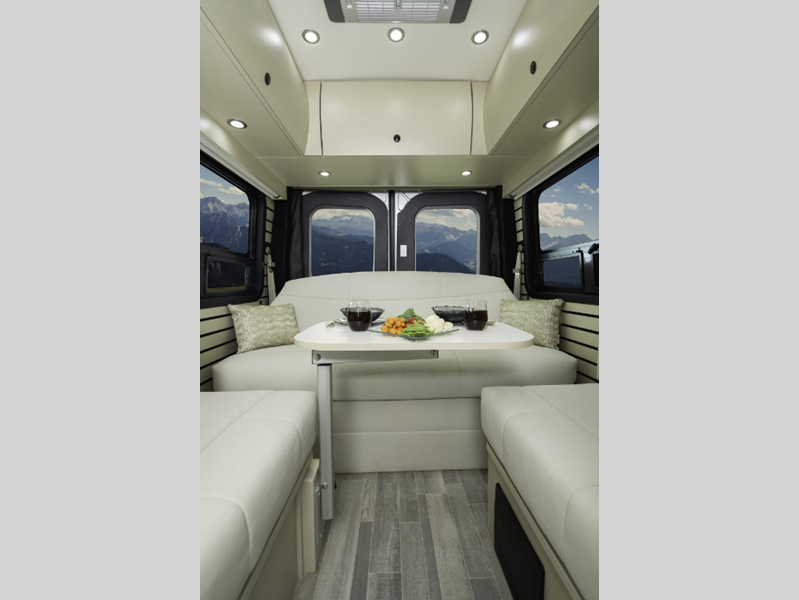

Rear Seating Area
- Lagun table mount system w/ 360° swivel tabletop
- Front and rear mount for table (FL, TW)

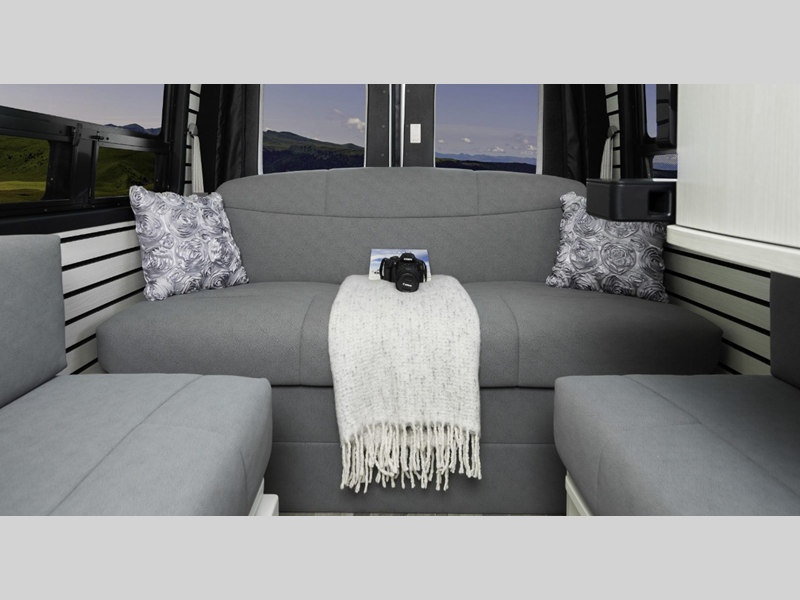

- Power sofa w/ two three-point seat belts
- Memory foam sofa cushions
- Ultraleather® fabric
Cab Conveniences
- Driver and passenger power and heated swivel seats
- Mercedes-Benz leather
- Four-way lumbar support
- Power adjustments
- Memory settings
- Three-stage heating controls

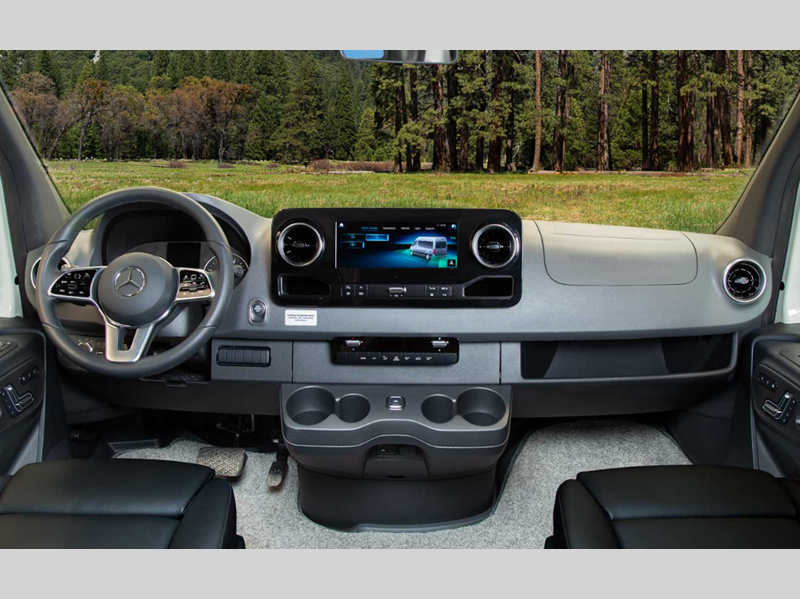

- MBUX Multimedia System w/ 10" Touchscreen
- Navigation
- Bluetooth® connectivity w/ audio streaming
- “Hey Mercedes” voice control
- Smartphone integration w/ hands-free function
- Multimedia interface w/ USB-C ports
- Smartphone wireless charging tray
- Keyless ignition
- Power sliding side entrance door
- Rear view camera system
- Air conditioning
- Power windows, door locks and mirrors
- Tilt / telescopic steering wheel
- Chassis battery quick-disconnect
- Overhead control panel w/ 2 reading lights
Safety
- Airbags - driver and passenger
- Distronic Plus® Adaptive Cruise Control
- Drive Away Assist
- Active Brake Assist
- Active Distance Assist Distronic
- Traffic Sign Assist
- Attention Assist
- Active Lane Keeping Assist
- Blind Spot Assist
- Crosswind Assist
- LED headlamps
- Tire repair kit w/ air compressor and repair liquid
- Locking fuel fill
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Manu-Facts:
A Strong Heritage of Innovation, Integrity and Building Lasting Relationships
Pleasure-Way founder, Merv Rumpel, started this company on the foundation of an old-fashioned work ethic, pride in craftsmanship and a customer comes first approach to business. Dean Rumpel, Merv’s son, is now the Pleasure-Way CEO and is proud to follow these same principles today.
Even now, in the company’s 35th year, we do not mass produce our motorhomes on assembly lines, as each motorhome is hand-crafted and custom-fit to exacting standards and quality inspections. We are proud of each and every one of the motorhomes we have built and continue to stand behind our work.
We would never be where we are today without the incredible dedication our employees have shown and the enthusiastic support from our owners. We strive to create motorhomes that live up to both our high standards and your high expectations. With this in mind, we will continue to create modern products that will last for years to come.
